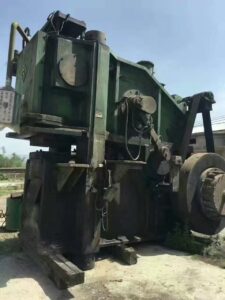

Yatay Dövme Makinesi Hasenclever WSHK 800 - 800 ton
Teknik Özellikler (EN) - Yatay Dövme Makinesi Hasenclever WSHK 800 - 800 ton (ID: 76373)
| Type | Forging upsetter |
| Manufacturer | Hasenclever |
| Model | WSHK 800 |
| Max. clamping force | 1000 ton |
| Max. forging force | 800 ton |
| Nominal rod diameter | 95 mm |
| Total stroke | 370 mm |
| Strokes per minute | 38 |
| Clamping jaw dimension | |
| — Length | 500 mm |
| — Width | 630 mm |
| Total thickness of both jaws | 400 mm |
| Total length of tool space | 1130 mm |
| Opening stroke of upper carriage with jaws | 70 mm |
| Main motor | 58.5 HP, 1500 RPM |
| Weight | approx. 70 ton |
