Metal damgalama hattı Schuler G2 - 3800 ton

Dabrox öneri ID: 76324

Bu teklif hakkında ayrıntılı bilgi isteyin:
- bulunabilirlik, fiyat
- ödeme / teslimat koşulları
- özellikler, durum, fotoğraflar vb.

Teknik Özellikler (EN) - Schuler G2 (ID: 76324)

TypeStamping line
ManufacturerSchuler
ModelG2
Year of manufacture1989
Hydraulic press SMG (1)
Pressure 1400 ton
Stroke 950 mm
Daylight 2000 mm
Table surface area 3600 x 2500 mm
Slide area 3600 x 2500 mm
Die cushion capacity in table 400 ton
Die cushion stroke 500 mm
Die cushion pad area 3060 x 1860 mm
Approach speed 400 mm / sec
Working speed 40 / 80 mm / sec
Return speed 400 mm / sec
Required power 450 kW
Weight of machine approx. 240 ton
Mechanical presses Schuler (4)
Pressure 600 ton
SPM 16
Ram stroke 762 mm
Slide adjustment 406 mm
Shut height (stroke down, adjustment up) 1322 mm
Free frontal opening L-R 3700 mm
Table surface area 3350 x 2134 mm
Slide area 3350 x 2134 mm
Die cushion capacity in table 180 ton
Die cushion stroke 305 mm
Ejector in ram 60 ton
Ejector stroke in ram 230 mm
Required power 90 kW
Weight of machine approx. 185 ton

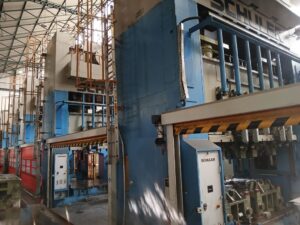

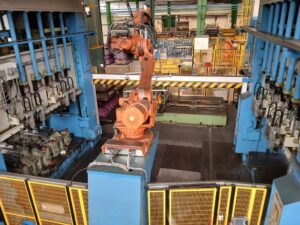

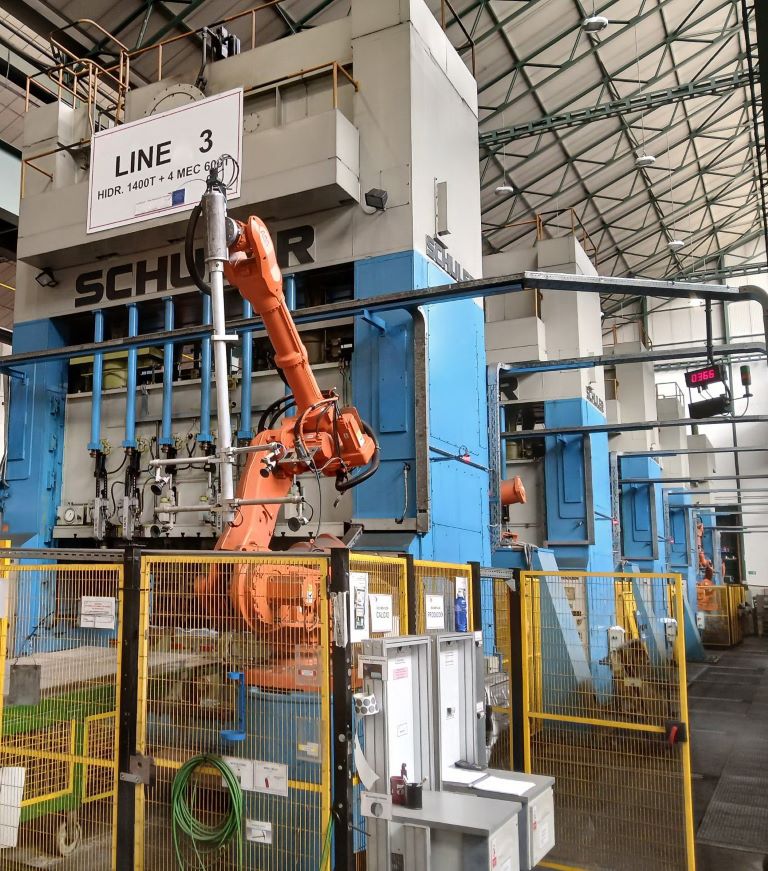

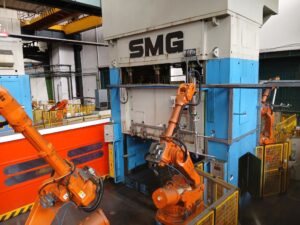

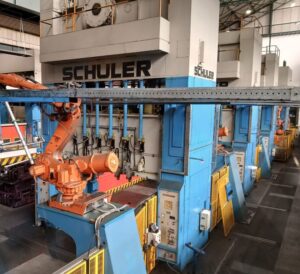

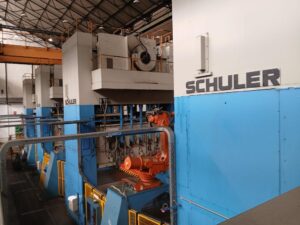

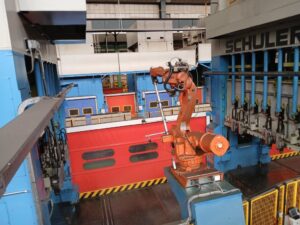

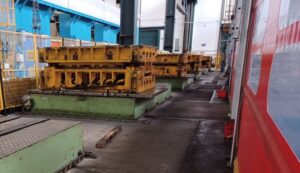

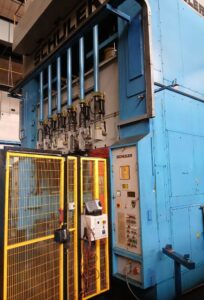

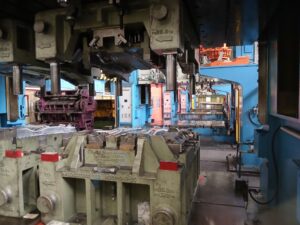

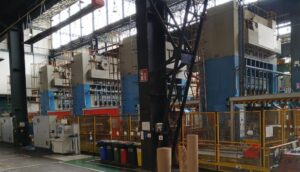

Fotoğrafları - Schuler G2 (ID: 76324)
