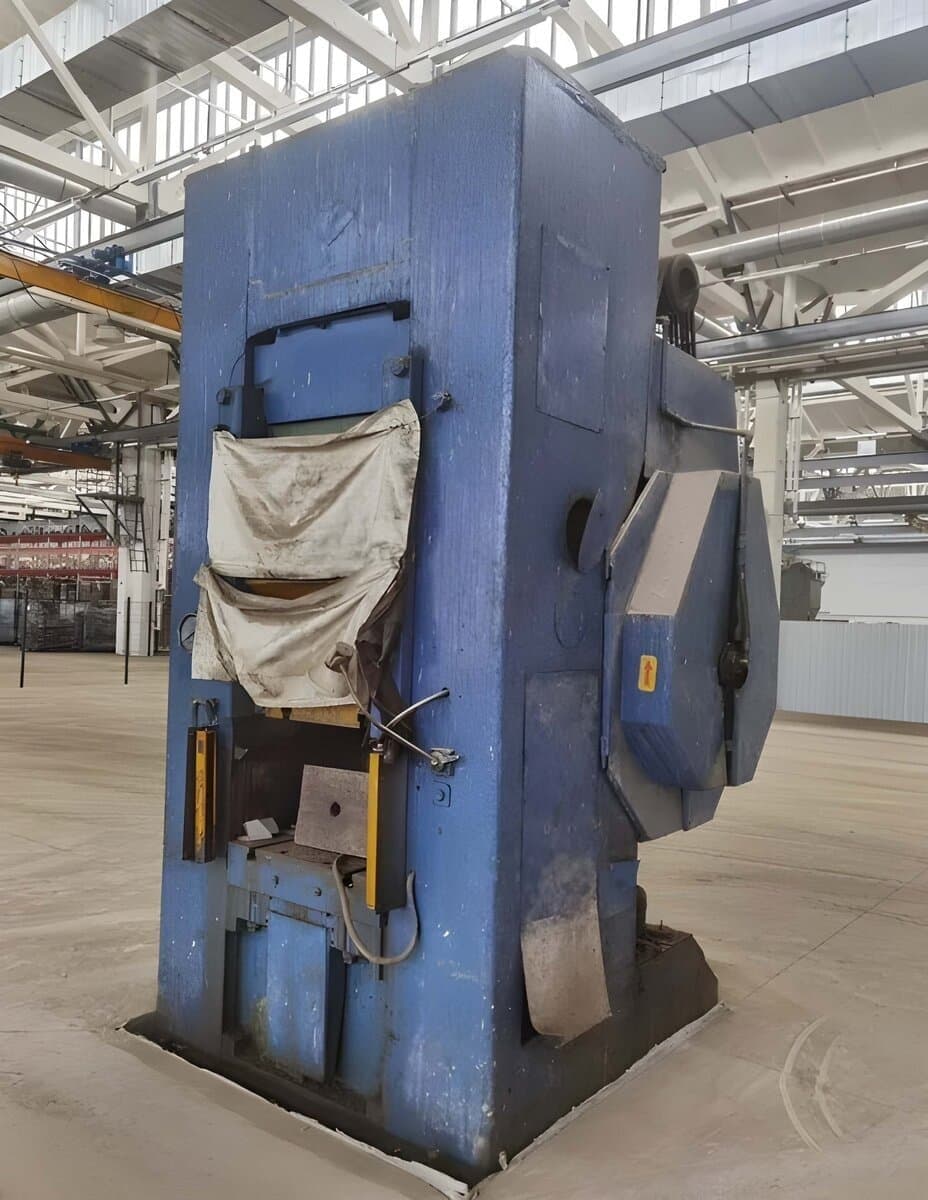

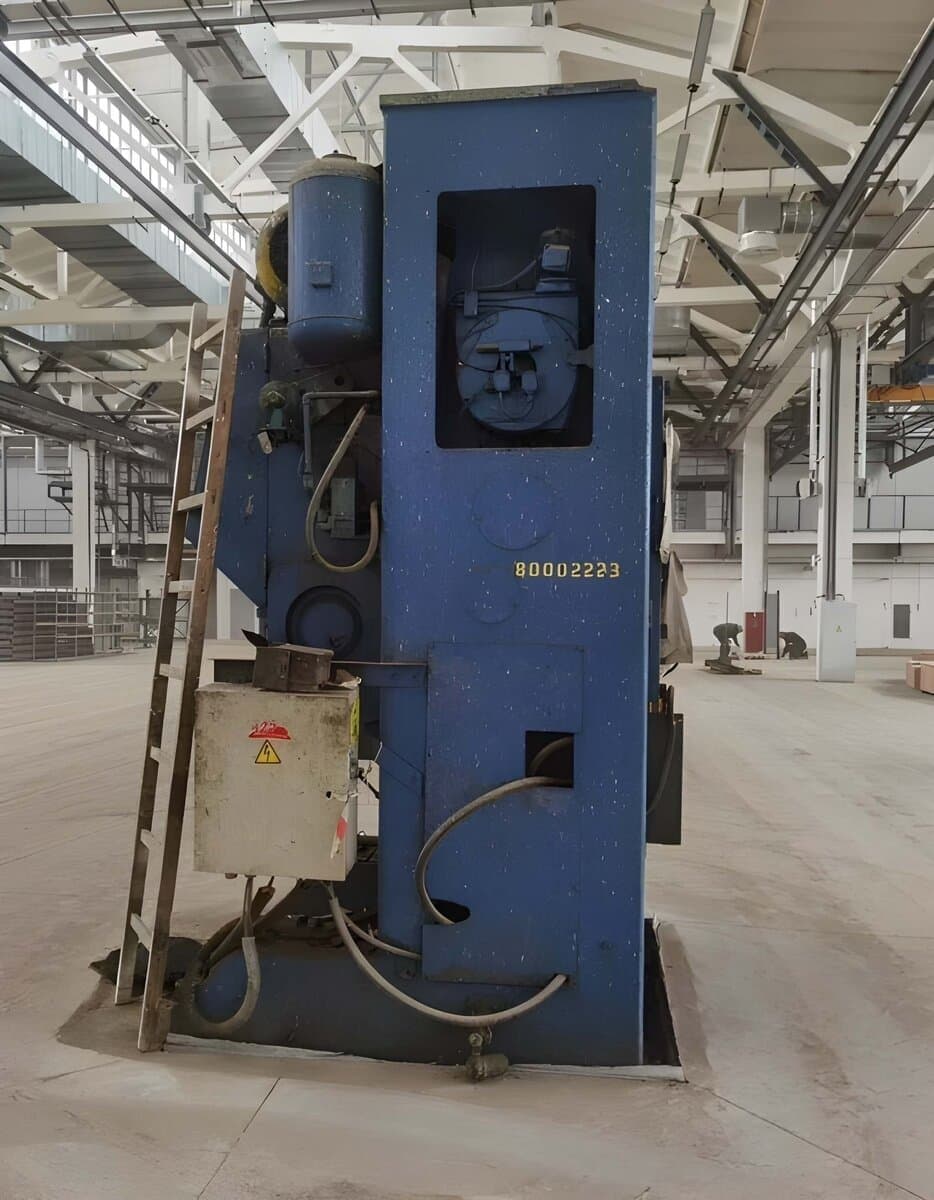

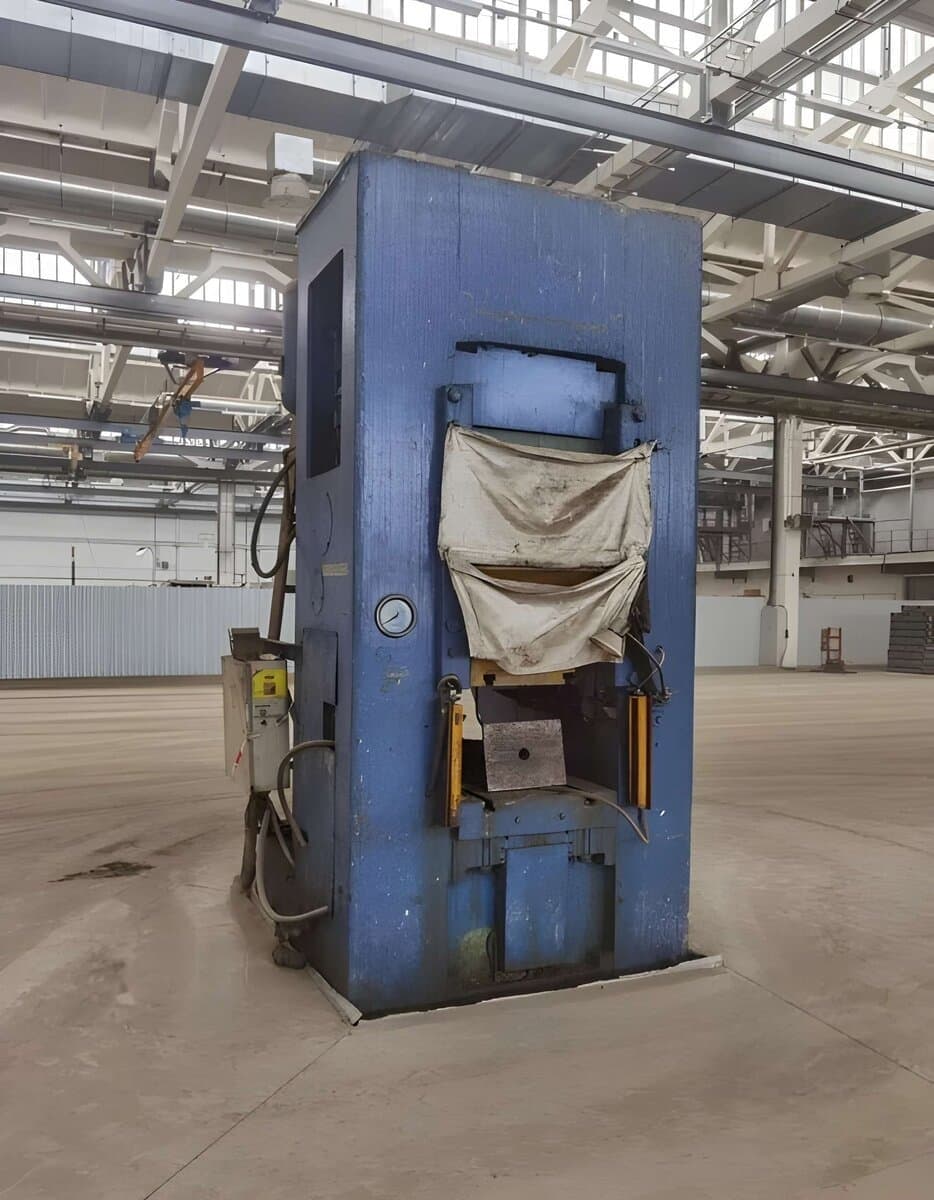

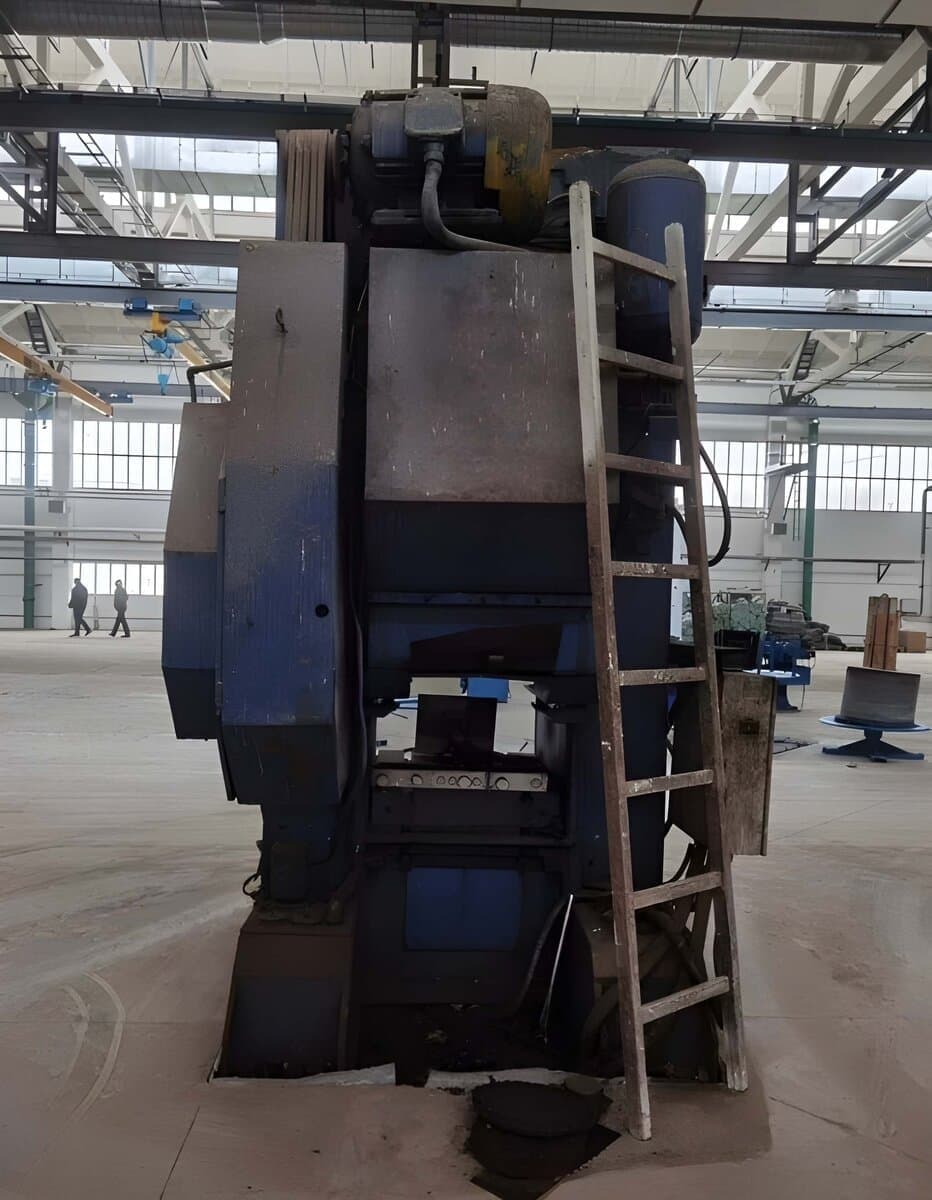

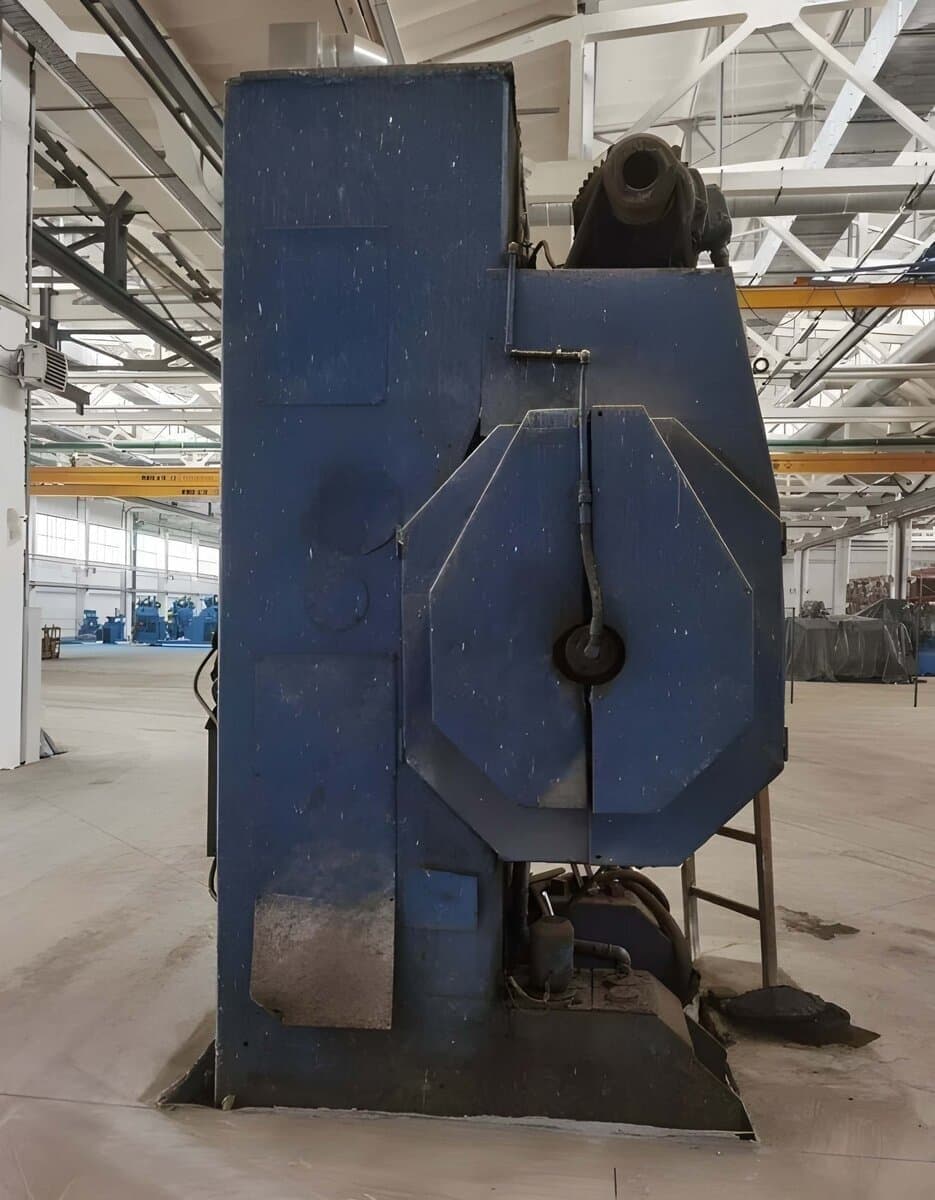

Mafsallı Pres Barnaul K8340 - 1000 ton

Dabrox İlan ID: S91890

Bu teklif hakkında detaylı bilgi talep edin:
- stok durumu, fiyat
- ödeme/teslimat koşulları
- özellikler, durum, fotoğraflar vb.

* Zorunlu alanlar

Teknik Özellikler (EN) -
Mafsallı Pres Barnaul K8340 - 1000 ton (ID: S91890)

TypeKnuckle joint press
ManufacturerBarnaul
ModelK8340
Nominal force10000 kN / 1000 ton
Stroke170 mm
Table size1000 x 800 mm
SPM18 / 32
Shut height630 mm
Slide adjustment16 mm
Hole diameter in slide80 mm
Bolster thickness160 mm
Bottom ejector stroke100 mm
Bottom ejector force320 kN
Bottom ejector adjustment25 mm
Top ejector stroke15 mm
Top ejector force100 kN
Main motor power40 kW
Main motor speed930 rpm
Press height above floor3470 mm
Overall height3620 mm
Overall dimensions2030 x 1950 x 3620 mm
Weight25637 kg
