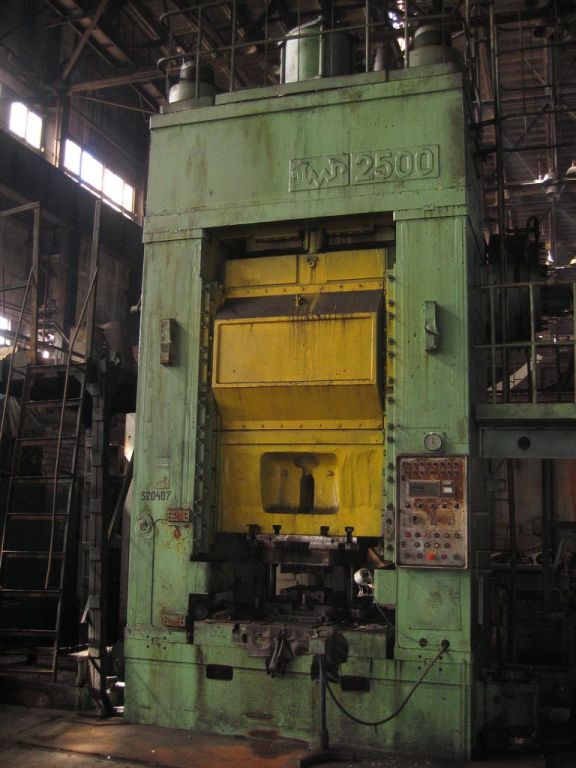

Mafsallı Pres TMP Voronezh KB8044 - 2500 ton

Dabrox İlan ID: S85117

Bu teklif hakkında detaylı bilgi talep edin:
- stok durumu, fiyat
- ödeme/teslimat koşulları
- özellikler, durum, fotoğraflar vb.

* Zorunlu alanlar

Teknik Özellikler (EN) - Mafsallı Pres TMP Voronezh KB8044 - 2500 ton (ID: S85117)

TypeKnuckle joint press
ManufacturerTMP Voronezh
ModelKB8044
Year1992 ton
Nominal force2500 ton
Ram stroke190 mm
Number of strokes in 1 minute14-20
Shut height560 mm
Bolster plate-to-ram adjustable stroke15
Ram course in bottom position with max. power4,5
Table size1530 x 1530 mm
Ram size front-to-back900 mm
Distance between slides1420 mm
Main motor77 kW, 380 V
Overall dimensions4920 x 3340 x 5980 mm
Weight125480 kg
