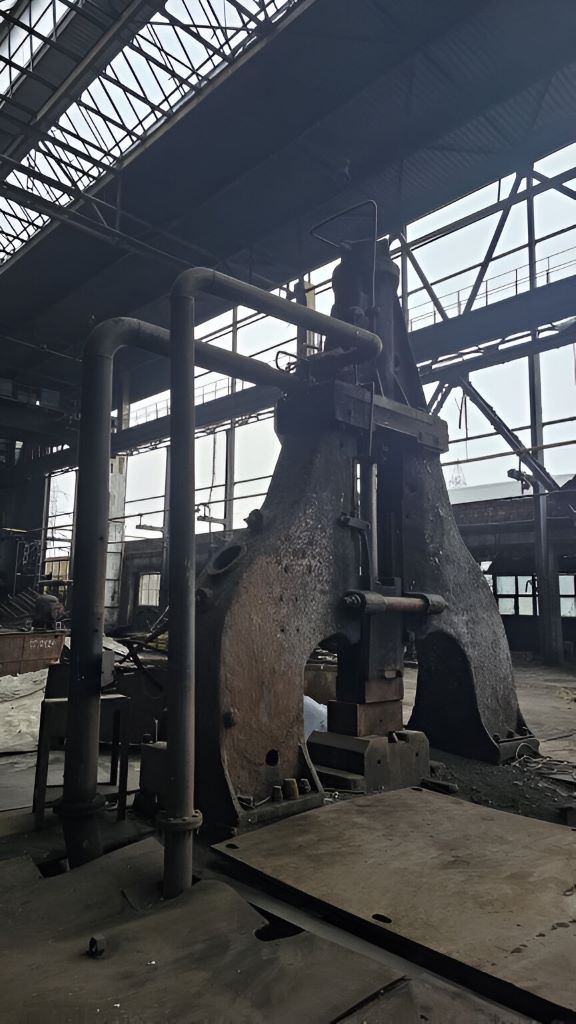

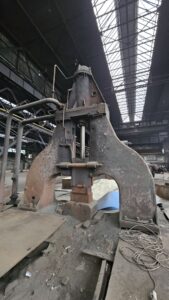

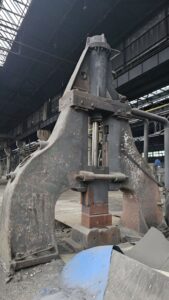

Serbest Dövme Çekici ICP-TCM 3 MT - 3 ton
Teknik Özellikler (EN) -
Serbest Dövme Çekici ICP-TCM 3 MT - 3 ton (ID: 76275)
| Type | Open die forging hammer |
| Manufacturer | ICP-TCM |
| Model | 3 MT |
| Nominal mass of drop parts | 3150 kg |
| Max. no. of blows/min. | 50 |
| Ram stroke | 1250 mm |
| Height of the working area | 630 mm |
| Distance between columns | 2700 mm |
| Distance between guideways | 630 mm |
| Diameter of the workinh cylinder | 760 mm |
| Diameter of the ram rod | 180 mm |
| Surface of the anvil | 330 x 630 mm |
| Total weight | 74700 kg |
| Weight of the anvil | 47600 kg |
| Weight of the hammer less the anvil | 26900 kg |
