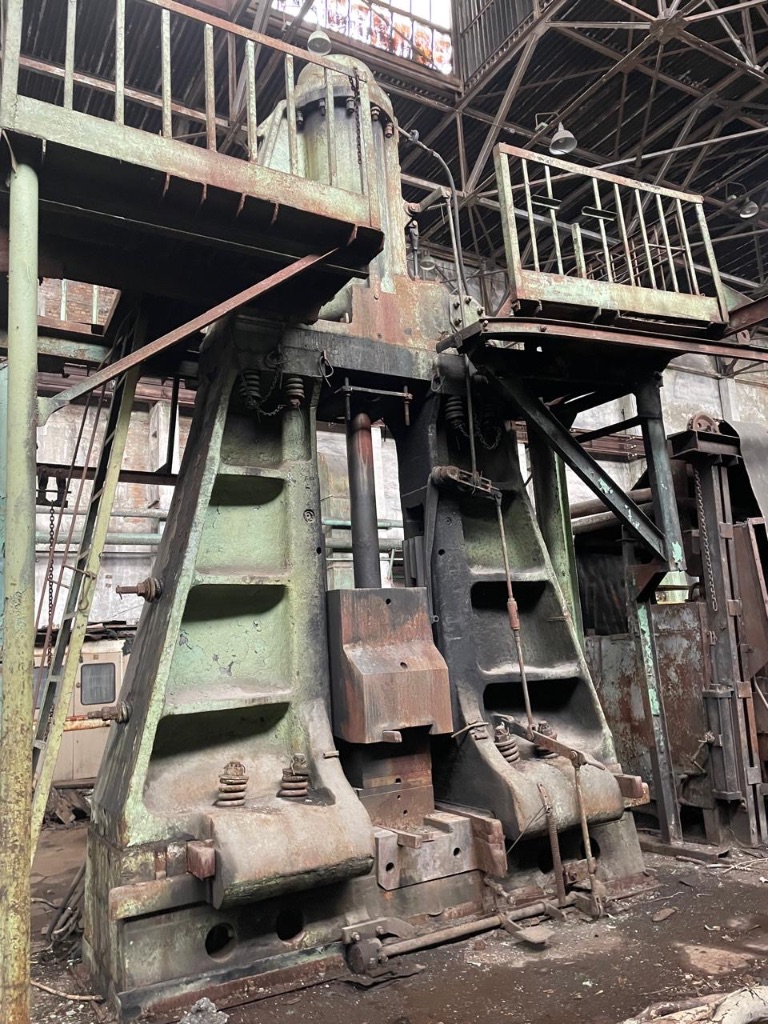

Dövme Çekici VoronezhPress M213 - 3 ton
Teknik Özellikler (EN) -
Dövme Çekici VoronezhPress M213 - 3 ton (ID: S89610)
| Type | Forging hammer |
| Manufacturer | VoronezhPress |
| Model | M213 |
| Year of manufacture | 1986 |
| Ram weight | 3150 kg / 3,15 ton |
| Impact energy | 8000 kgf-m |
| Maximum working stroke | 1250 mm |
| BPM | 60 |
| Distance between guides clear | 710 mm |
| Ram dimensions front-to-back | 800 mm |
| Die holder dimensions front-to-back | 1000 mm |
| Minimum distance from ram to die holder | 340 mm |
| Steam/air pressure | 7–9 bar |
| Anvil weight | 63000 kg |
| Overall dimensions | 4100 x 1900 x 5780 mm |
| Total weight | 89000 kg |
