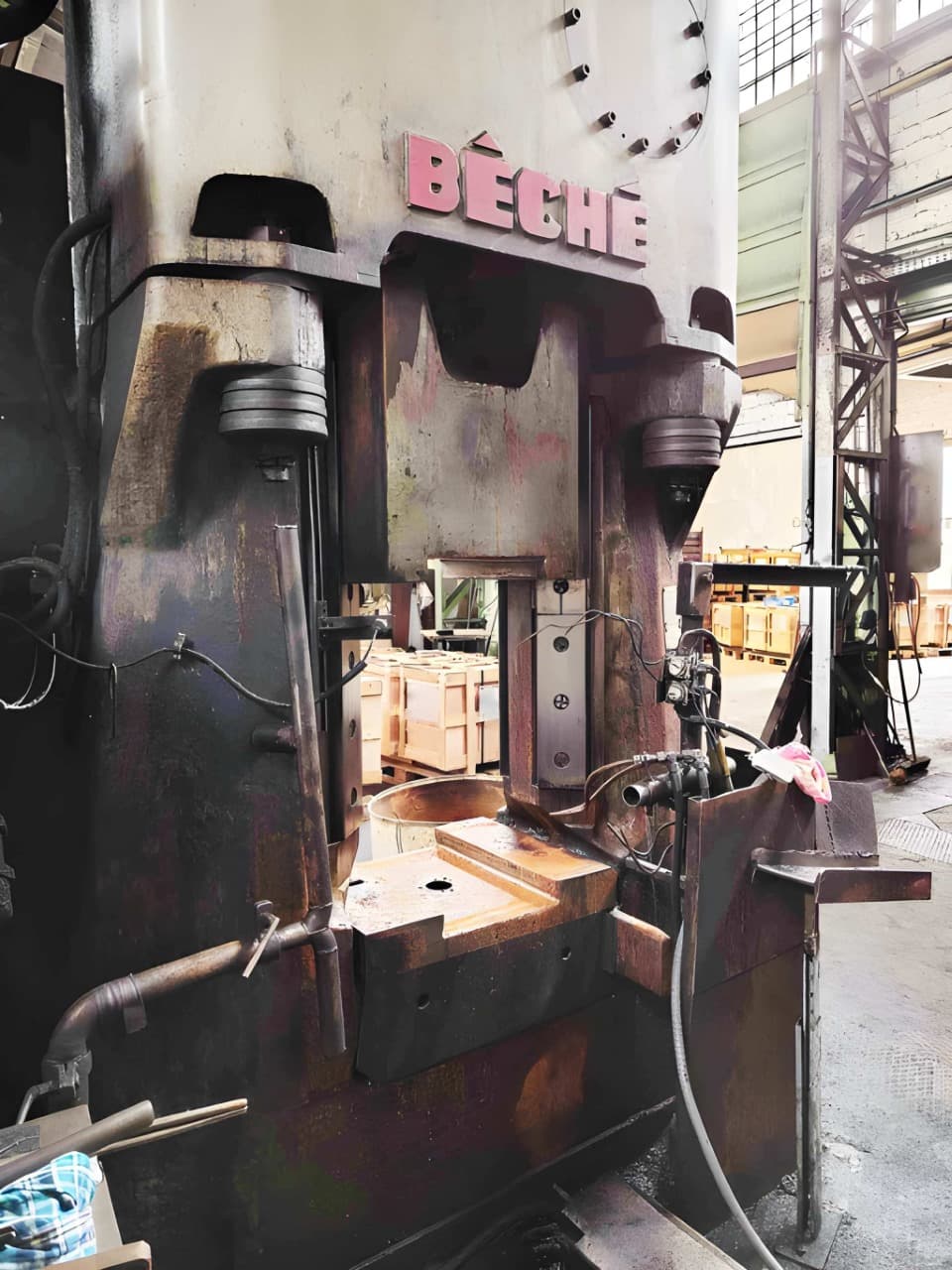

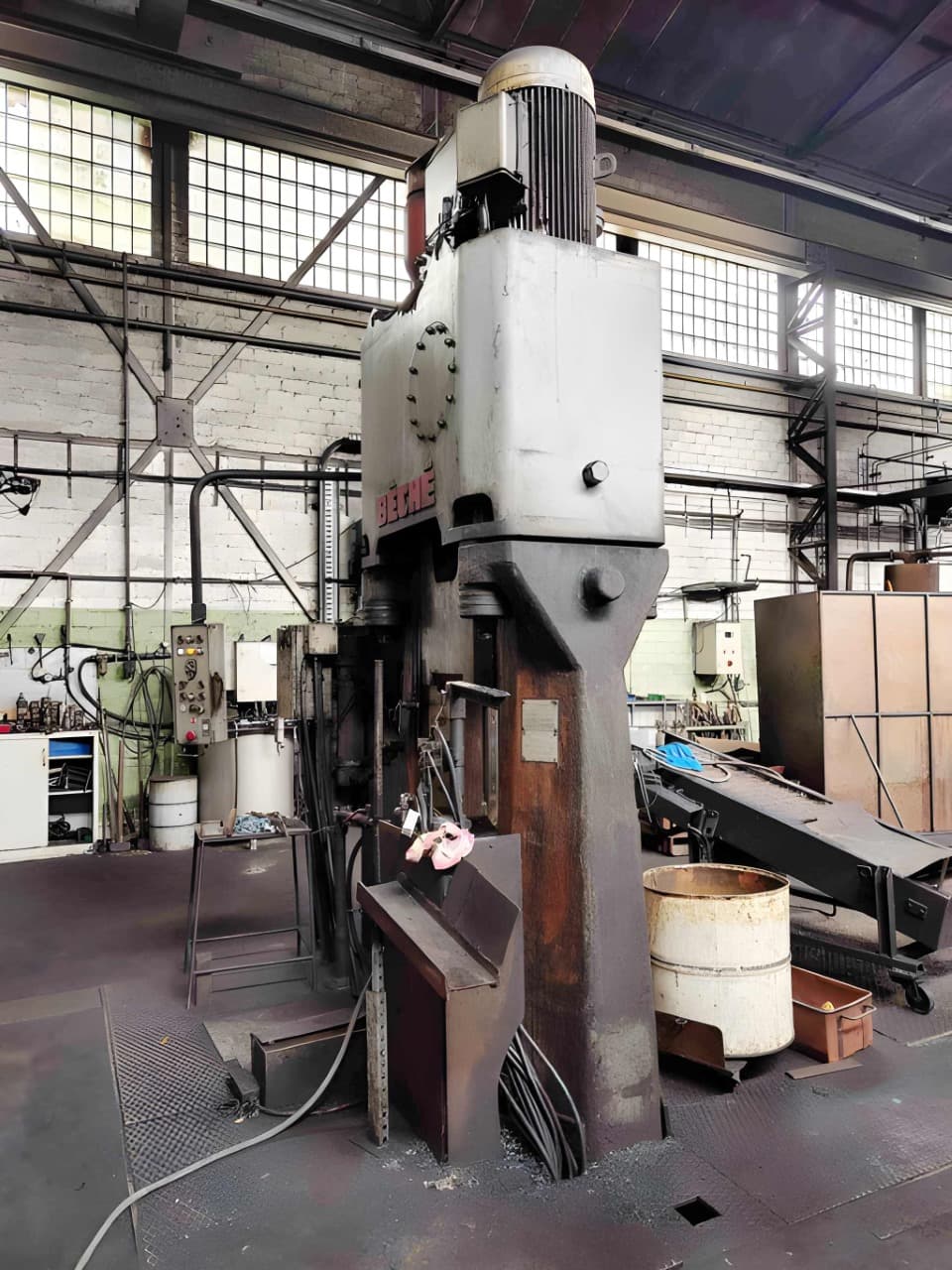

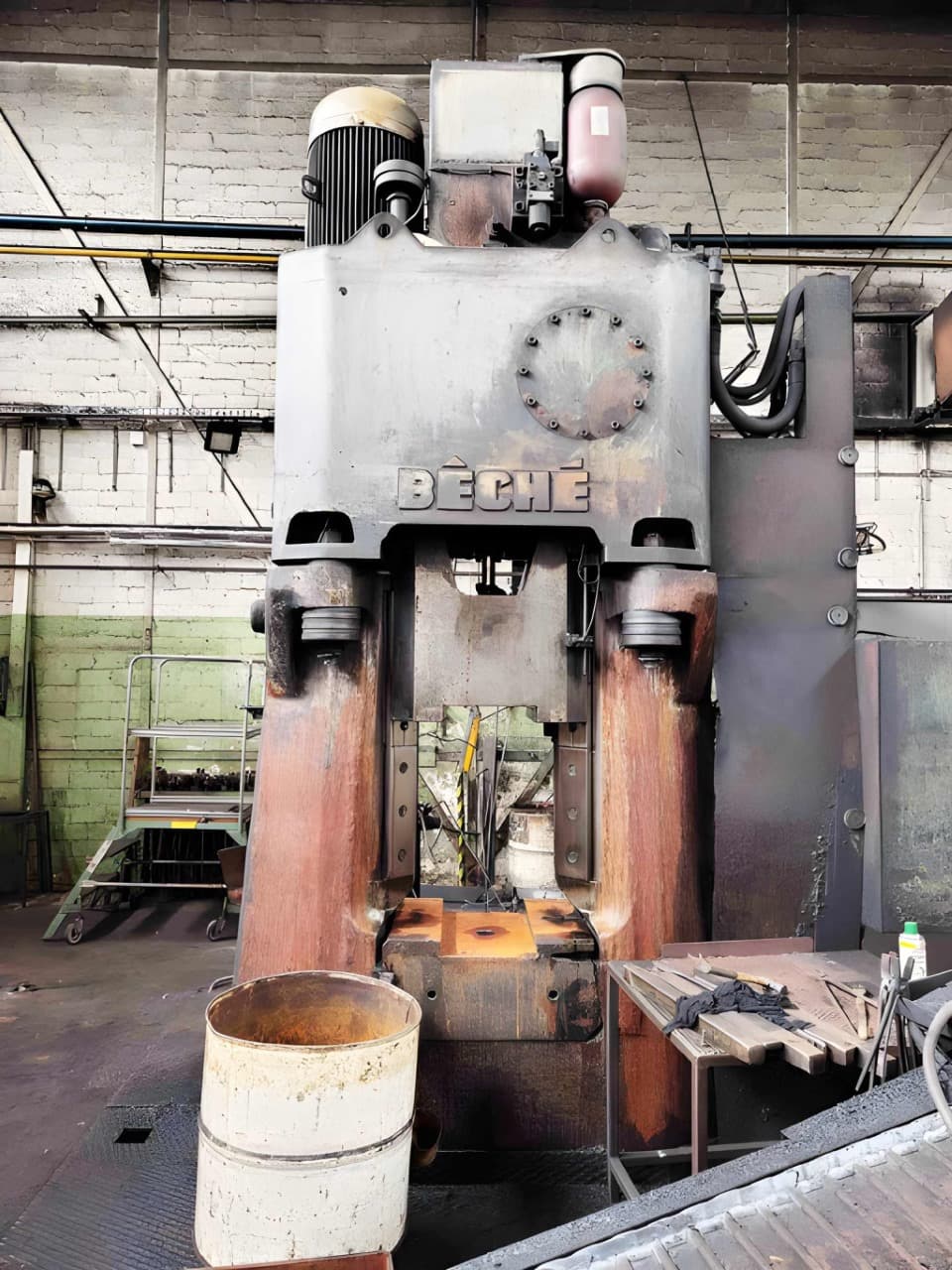

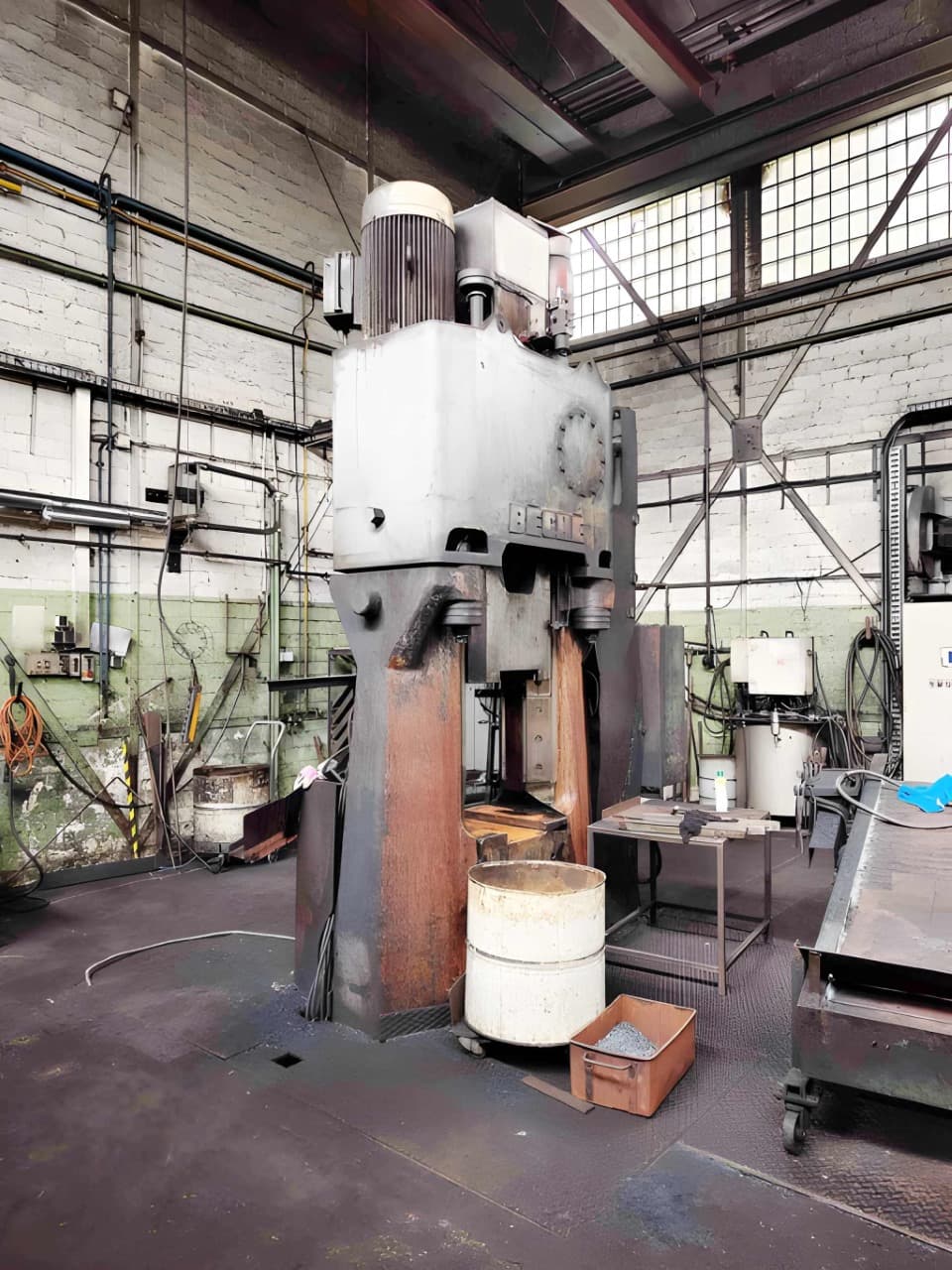

Hidrolik Dövme Çekici Beche KGH 1.6 - 16 kJ
Teknik Özellikler (EN) -
Hidrolik Dövme Çekici Beche KGH 1.6 - 16 kJ (ID: 76505)
| Type | Hydraulic forging hammer |
| Manufacturer | Beche |
| Model | KGH 1.6 |
| Impact energy | 16 kJ |
| BPM continuous at full load | 32–38 |
| BPM max | 122 |
| Final ram velocity | 5,1 m/s |
| Main drive pump flow rate | 187,5 l/min |
| Circulation pump flow rate | 120 l/min |
| Oil capacity in drive head | 550 l |
| Clear width between guides | 520 mm |
| Working height to upper edge of insert | 750 mm |
| Ram depth | 470 mm |
| Insertion depth | 550 mm |
| Die height minimum | 120 mm |
| Die height maximum | 320 mm |
| Overall dimensions | 1485 x 825 x 4552 mm |
| Foundation dimensions | 3350 x 3300 mm |
| Total weight | 23200 kg |
